RP892

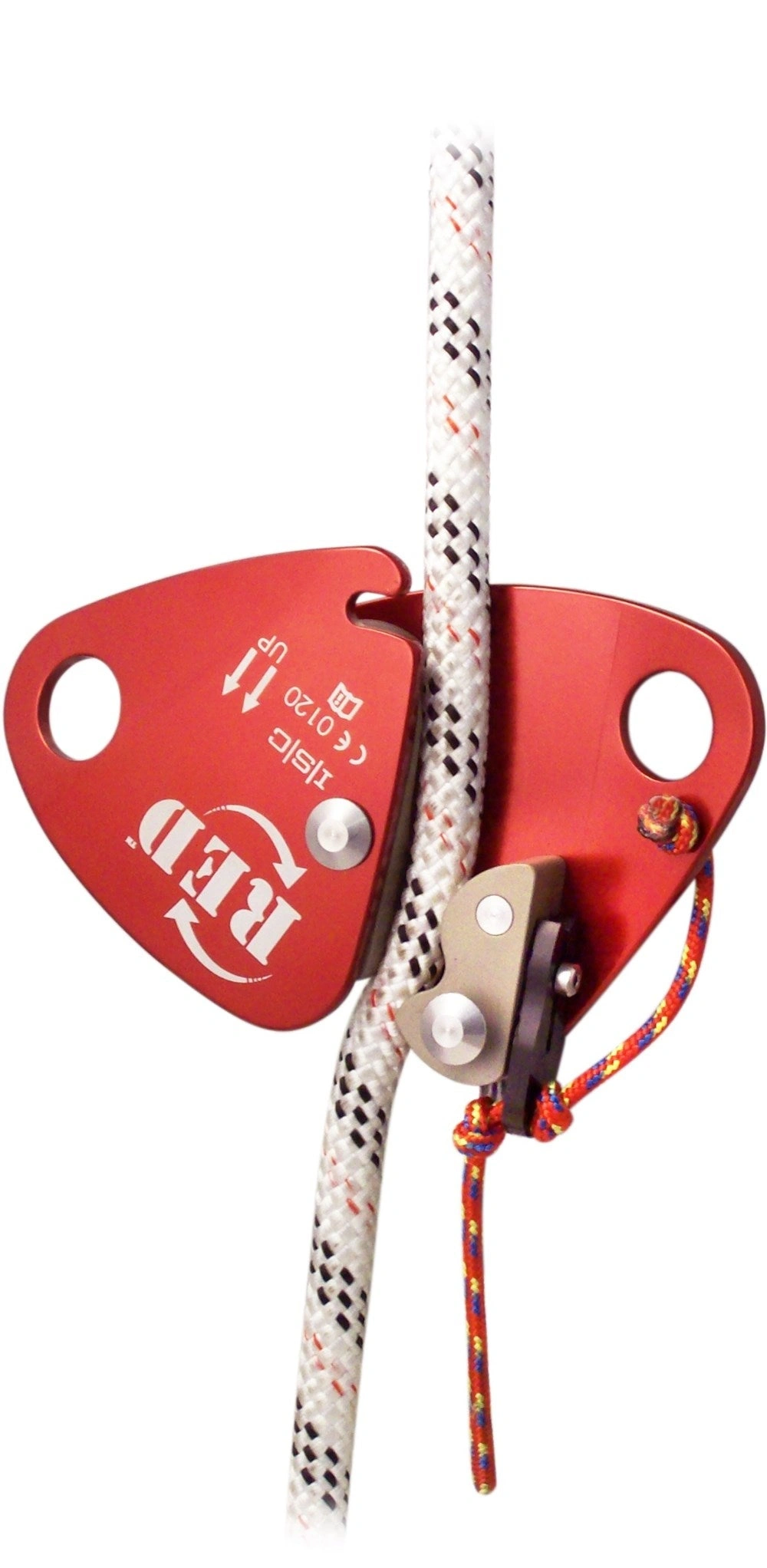

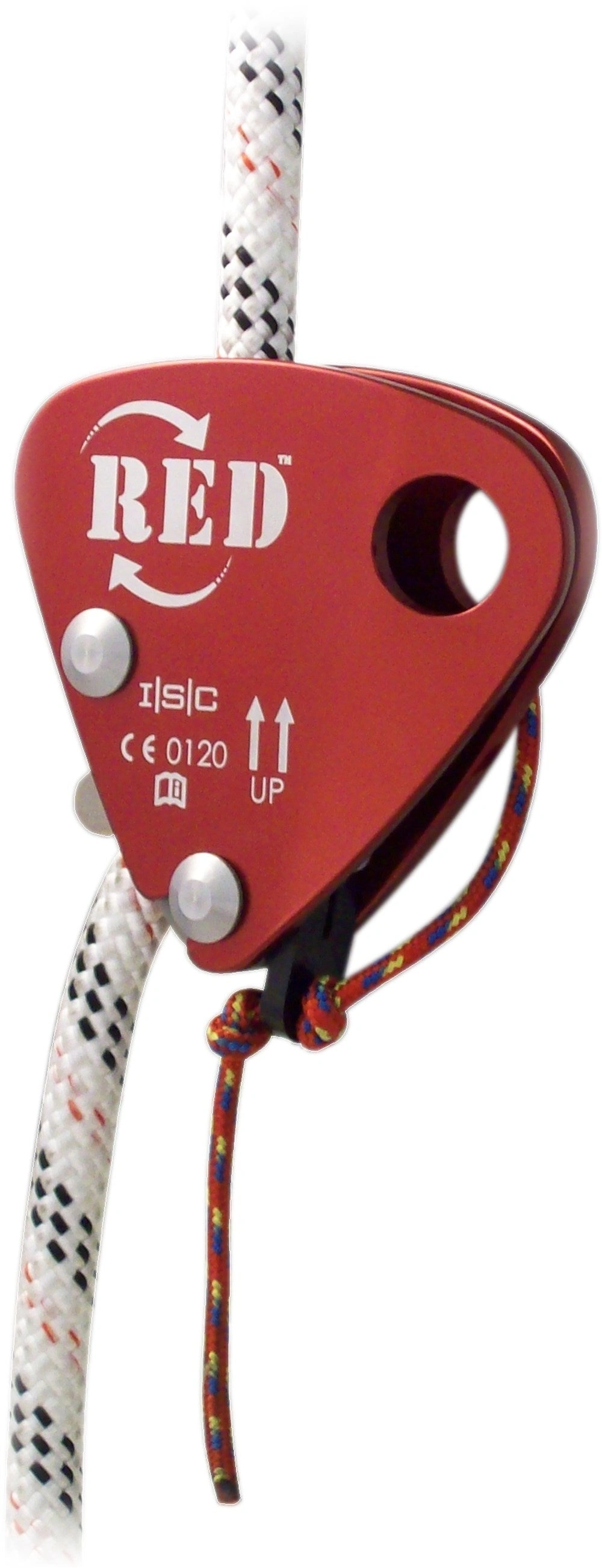

The RED's cams have a positively locking spring, which means that the device is self-parking rather than self-tailing. This is important for Rope Access work techniques as they require the back-up device to be positioned so as to reduce fall factors to a minimum.

The RED makes use of 'Rotational Braking' which means the device rotates clockwise creating friction and resistance, which then results in very effective automatic braking in the event of a sudden pull on the cows-tail such as might occur during a main line failure.

The Popper device is a breakaway release clip, which provides a secondary attachment point for the tow cord. When used during normal positioning activity, this secondary attachment point allows the user to tow the device directly downwards. In a panic situation, the popper clip is designed to release under load and mitigate against uncontrolled towing of the device.

*Standard (fixed) tow cord & non-tow cord versions also available.

Technical Information

Rope diameter range (mm)10.5 - 11mm (Approved Ropes only)
Number of persons2
(WLL) Working Load Limit (kg)240
(WLL) Working Load Limit (lbs)529
Serial numberingAs standard
Cam materialAluminium
FinishAnodised

Approved Standards

EN 12841
